Product Description

China hydraulic winch manufacturer



hydraulic winch manufacturer, hydraulic winches, hoisting winch, marine winch, drilling rig winch, crane winch, power winch, hydraulic operated winch, dredger winch



Company introduction

We are the China-based manufacturer of hydraulic winch (hydraulic winch, hoisting winch, wireline winch, cargo winch, drilling rig winch, crane winch, marine winch, dredger winch, hydraulic winches, compact winch, free fall hydraulic winch) with more than 10 years experience in designing and manufacturing different types of hydraulic winches fro widely application.



We are the group company in China, the registered capacity is 6,000,000 and the factory area is about 6000sqm. Staffed with 150 employees, including 10 engineers.



The products are widely used in engineering machinery, ship-, petroleum-, mining industry, metallurgical machinery, light industry, agriculture, enviroment.



Now we are stepping into the international market, our products are being exported to

Germany, USA, CANADA, ITALY, NETHERLAND, KOREAM, SINGAPORE, TURKEY, AUSTRALIA, INDIA, INDONESIA and others.



Product introduction

For the winch in the picture, it is our GW series hydraulic winches (hydraulic winch, hoisting winch, wireline winch, drilling rig winch, crane winch, dredger winch), which are widely used in marine deck machinery, harbor, petroleum, drill machine, engineering machinery, mining, geological exploration and construction machinery.

Features:

1. One-or two-stage planetary gearboxes, smooth operation and reasonable structure.
2. Normally closed friction type brake, high braking torque, safe and reliable operating.
3. Small volume, compact structure and high transmission efficiency.
4. Radial piston hydraulic motor with long life operating.
5. Mounting frame is available on request.
6. Balance valve, shuttle valve, limit switch and other accessories are also available on request.



Specification:

For the following specification, it is for your reference, we can also design and manufacture the winch with pull force up to 60 ton based on your requirements.

Model	The 1st layer		Diameter of reel bottom (mm)	Diameter of rope (mm)	Capacity of rope (mm)	Hydraulic motor	Gearbox Model
	Pull Force (KN)	Rope Speed (m/min)
GW2.5-10-60-10-ZP	10	0-30	238	10	60	GM05-110D51	C2.5-5
GW2.5-20-50-12-ZP	20	0-30	238	12	50	GM05-200D51	C2.5-5.5
GW3-30-65-15-ZP	30	0-35	305	15	65	GM2-420D51	C3-5
GW3-40-60-16-ZP	40	0-35	305	16	60	GM2-500D51	C3-5.5
GW4-50-70-20-ZP	50	0-40	380	20	70	GM3-900D240101	C4-5
GW4-60-68-21.5-ZP	60	0-40	380	21.5	68	GM3-1000D240101	C4-5.5
GW5-80-100-24-ZP	80	0-40	470	24	100	GM5-1800D240101	C5-5
GW5-100-90-28-ZP	100	0-40	470	28	90	GM5-2000D240101	C5-5.5
GW6-120-176-30-ZP	120	0-30	600	30	175	GM6-3000D480101	C6-5.5
GW6-150-150-34-ZP	150	0-25	600	34	150	GM6-3000D480101	C6-5.5

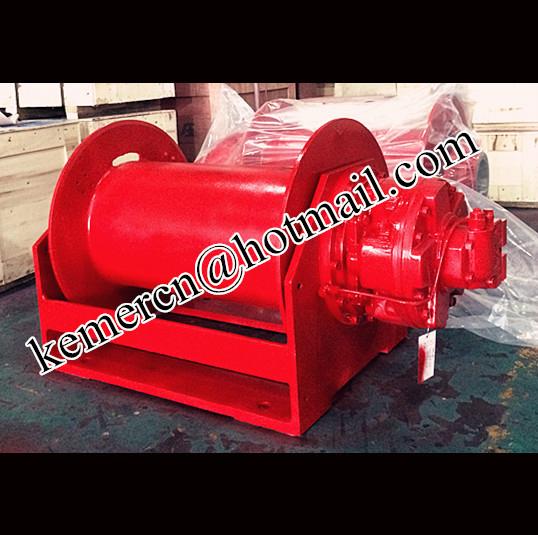

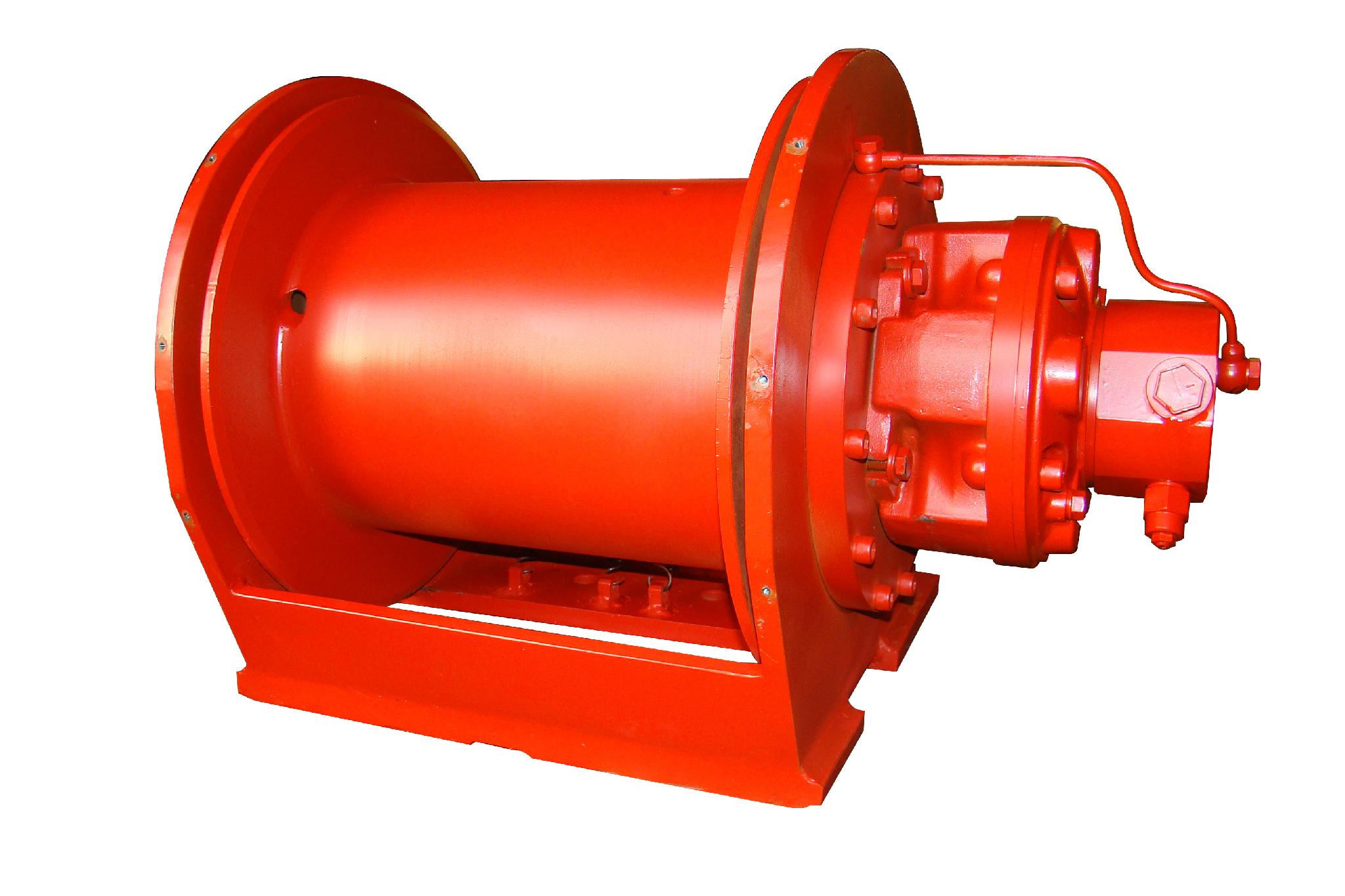

Picture for reference:

Payment Terms︰ cathyhsu@foxmail.com

Product Image
